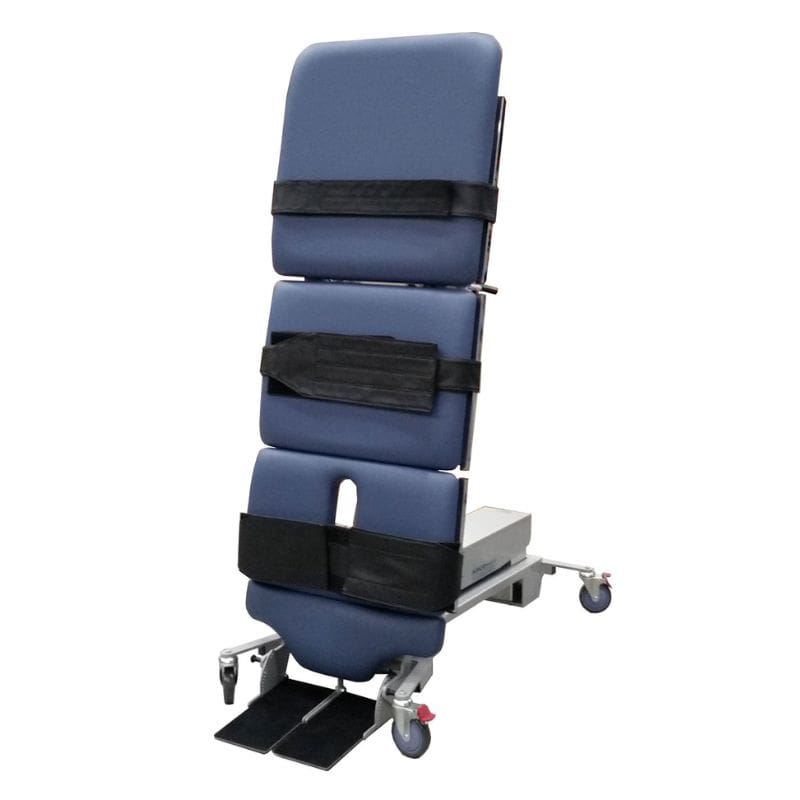

ABCO Dynamic Sliding Top Tilt Table upright view

ABCO Dynamic Sliding Top Tilt Table

by ABCO Health Care
$9,320.00
In stock - delivered in 2-10 business days.
Best Price Guarantee
30-Day Change of Mind Returns
Manufacturer Warranty
Clinic & Rehab Specialists

Notify me when back in stock

Progressive weight-bearing from lying to standing, not a fixed treatment position - meet the ABCO Dynamic Sliding Top Tilt Table

Deconditioned patients recovering from spinal cord injury, ICU stays, or cardiac events need gradual weight-bearing progression, not a table that only offers flat or fully upright.

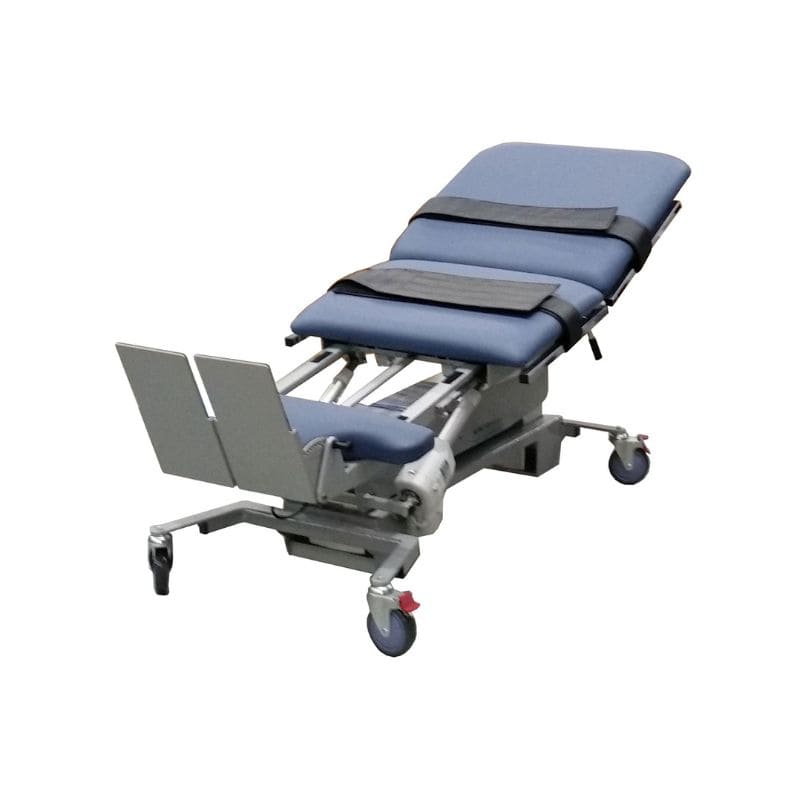

Twin electric tilt takes the table from 0° to 85°, with a sliding seat that moves approximately 350mm to support the transition from lying to standing.

This progressive partial weight-bearing capability can significantly strengthen deconditioned lower extremities and objectively assess physical progress.

ABCO Dynamic Sliding Top Tilt Table built to hold up in daily practice use

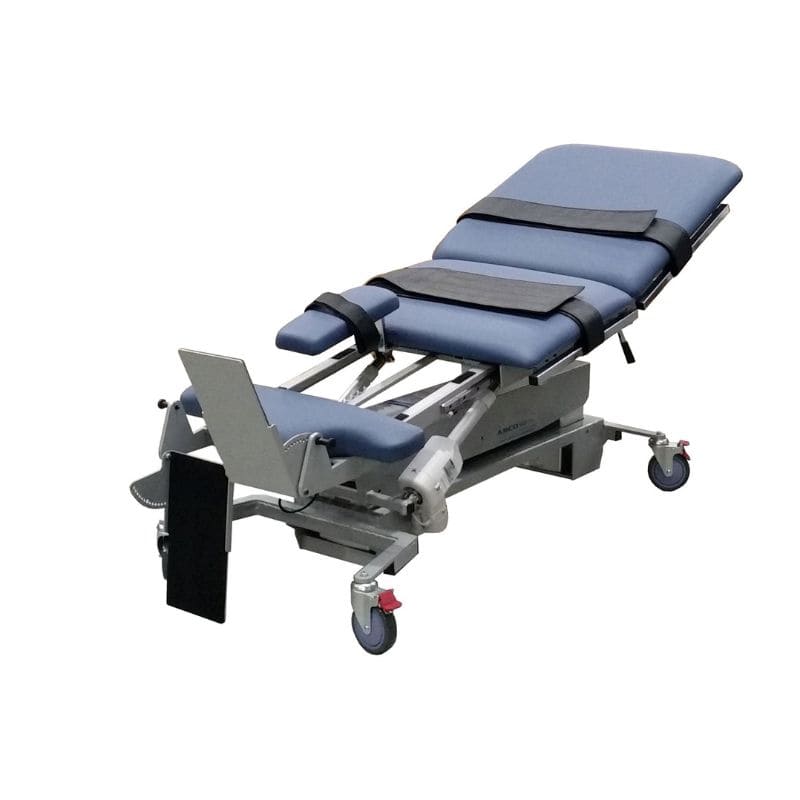

Independently adjustable twin foot plates, +30° to -30° in 13 steps, give genuine positioning control as the patient moves toward standing.

The backrest automatically returns to flat once the table reaches 30°, a built-in safety behaviour during the tilt sequence.

Capable of handling patients up to 350kg, this table is practical across settings, from rehabilitation centres to bedside use.

What you actually need to know about the ABCO Dynamic Sliding Top Tilt Table before ordering

Do we need the Stronger/Faster tilting capacity upgrade?
Standard is 200kg at 30 seconds. The Stronger/Faster option (+$2,490) increases this to 350kg at 12 seconds, worth it if your patient load or throughput needs the extra speed and capacity.

How long will this actually take to arrive?
This model is made to order in 4 to 6 weeks. If existing stock is available, orders ship in 2 to 3 days instead, confirm current stock status before ordering if timing matters.

What accessories are actually available?
An FS3 foot control (3 function, +$379.50) suits tables with 3 function Linak systems or as a second control for both-sided adjustment. A split strap set (+$630.00) allows independent leg strapping. An adjustable work surface (+$760.00) adds a 710mm wide tray table. Torso wedges (+$280.00 per side) enhance patient alignment.

What's the warranty and support process if something goes wrong?
5 years warranty, parts only. Designed and manufactured in Australia.

Product Info

The ABCO Health Care Dynamic Tilt Table is a versatile and beneficial piece of equipment designed to enhance patient rehabilitation. With its twin column lift and adjustable height, it offers a powerful lifting function without lengthwise movement, ensuring safety and ease of use. The table is ideal for various therapeutic applications, including spinal cord injury recovery, ICU rehabilitation, and cardiac assessments.

Safety is a priority with features like fewer crush points and easy transfers from wheelchairs or beds. Carers can adjust the working height to their comfort, making it easier to manage patients. The table allows for progressive partial weight-bearing exercises, which can significantly strengthen deconditioned lower extremities and objectively assess physical progress.

Capable of handling patients up to 350kg, the Dynamic Tilt Table is practical for different settings, from rehabilitation centers to bedside use. Its mobility is enhanced by lockable castors, making it easy to move. Standard accessories like patient straps, angle indicators, and a leg support add to its functionality.

Overall, the Dynamic Tilt Table is a valuable tool for improving patient recovery rates while minimizing risks to carers.

Add-Ons

ABCO FS3 Foot Control 3 Function (+$379.50): Suitable for tables and chairs with 3 function Linak systems. Can also be added as an extra foot control for adjustments from both sides of table. Code 10616/3 on base of control.

ABCO Split Strap Set (+$630.00): The ideal Tilt Table Strap Set for ABCO Tilt Tables. Made from durable vinyl with velcro adjustments (95-140cm), they allow independent leg strapping.

ABCO Adjustable Work Surface (+$760.00): Tray Table for ABCO Tilt Tables (710mm wide). Easily adjustable and installable on-site.

ABCO Torso Wedge (+$280.00): Enhance patient alignment with ABCO Torso Wedges for Tilt Tables. Adjustable and easy to install on-site, these Lateral Supports. Price is per side.

Get set up with confidence

Add to Cart. Live chat available if you want to confirm tilting capacity, width, or accessory options before you order.

Specifications

Category Detail
SKU TY400.07021.CEE00H0.005P1
Number of Upholstery Sections 4
Height Adjustment Control Hand control
Height Adjustment Lift Operation Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Maximum Lifting Capacity 350kg Dynamic / 700kg Static
Table Tilt Function Twin Electric actuator adjustment 0° / +85°
Tilting Capacity 200kg

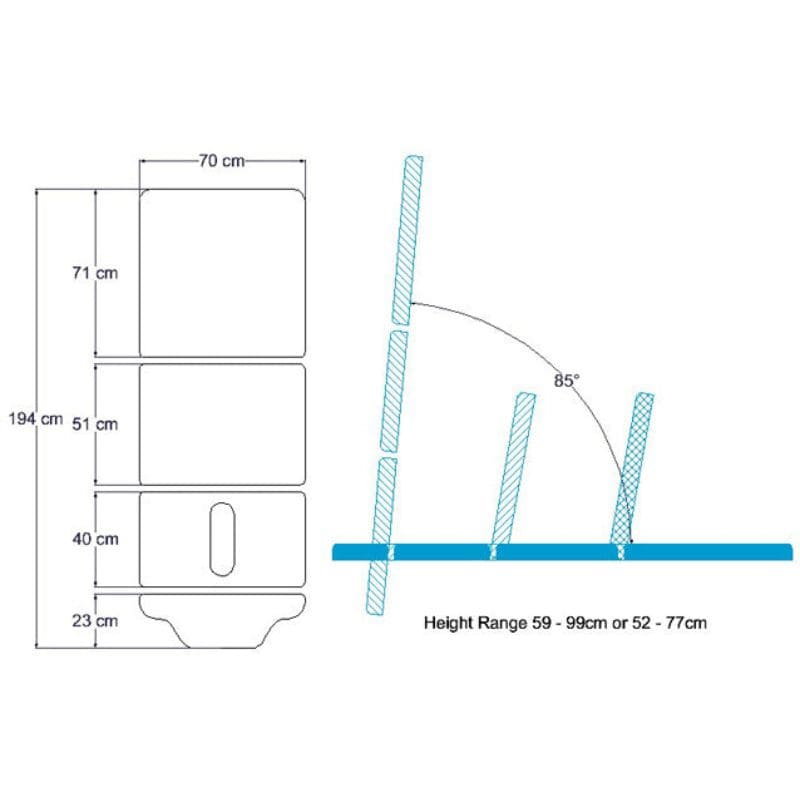

Height Adjustment Range 590 - 990mm
Overall Length 1950mm
Overall Upholstery Width 710mm
Upholstery Adjustment Table Tilts -0° / +85°; Backrest - 710mm Long – Electric -0° / +85° - Returns to flat when table reaches 30°; Sliding Seat - 510mm Long slides approx. 350mm; Removable Insert - 400mm Long; Foot section – 230mm Long; Independently adjustable angle twin foot plates (+30° / -30° in 13 steps); Single leg support fits to either side – 350mm long x 140mm wide x 125mm high
Frame Material Heavy steel plate and tube
Frame Colour Light Grey
Wheel System 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Upholstery Fabric Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Upholstery Foam 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
Upholstery Colours Wedgewood, Other colours on request
Electrical Approvals Medically approved according to EN60601-1 / AS3200
Electrical Requirements Supply 230vAC ±10°, 50hz max 3.0amp
Electrical Requirements Operation 24vDC max 70VA Battery back-up
Shipping Dimensions 197 x 82 x 65cm / 95kg. Shrinkwrapped on a wooden pallet
Weight 90kg
Total Main Body Sections 1
ARTG 123573
Warranty 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.
