Tilt Tables

A tilt table moves a patient from lying to standing in a controlled, supported way. Clinics use them for early mobility, circulation support and neurological rehab.

Straps, footplates and hoist access keep transfers safe for the patient and the carer.

Tilt tables for physiotherapy clinics, hospitals and rehabilitation centres. Choose from the Healthtec HT, EVO2 and ABCO ranges. Warranties run from 5 to 10 years.

All tables are made to order and arrive in 4 to 6 weeks. Call 1300 990 239 and we will help you choose.

Click Here For More Information...

Discover the Tilt Table That Fits Your Clinic

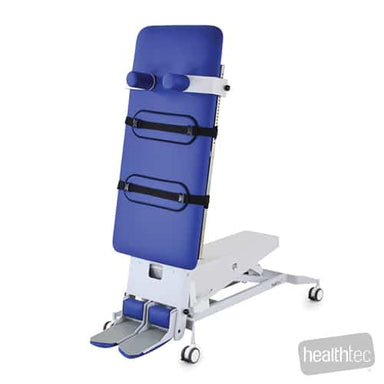

Healthtec HT Tilt Table Slide Top physio tilt table

HT Tilt Table Slide Top (Clear Span)

  • Split footplate
  • Friction-free sliding top
  • Shoulder horn posture support
  • 10 year structural warranty
From $8750 - Shop Now
ABCO Dual Action tilt table for rehabilitation

ABCO Dual Action Tilt Table

  • Twin electric column lift
  • 350kg dynamic lift capacity
  • 155mm hoist clearance
  • 5 years, parts only
From $6420 - Shop Now

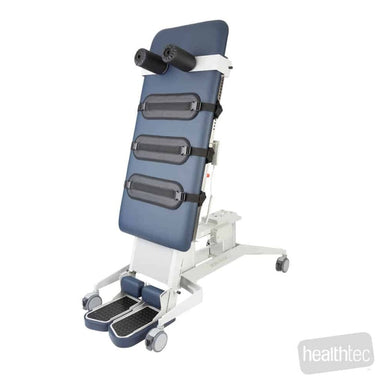

Healthtec EVO2 slide top tilt table

EVO2 Slide Top Tilt Table

  • CPR quick release
  • Split foldaway footplates
  • 400mm slide movement
  • 10 year structural warranty
From $13700 - Shop Now

Tilt Table Product Comparison by Model

Compare the ideal setting, key features and outcomes for each model side by side.

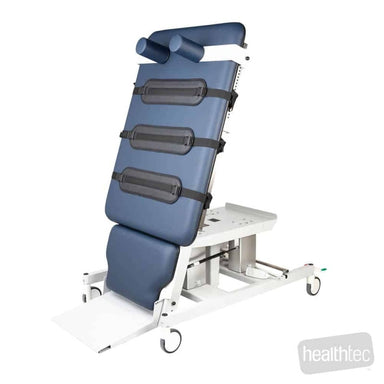

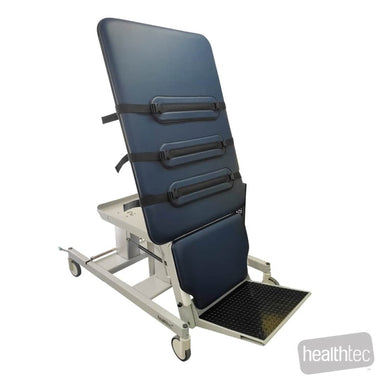

Healthtec HT Hi-Capacity tilt table

HT Hi-Capacity Tilt Table

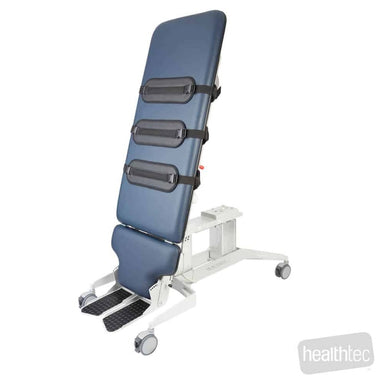

Healthtec EVO2 tilt table clear span

EVO2 Tilt Table (Clear Span)
Healthtec HT Tilt Table Single Section clear span

HT Tilt Table Single Section (Clear Span)

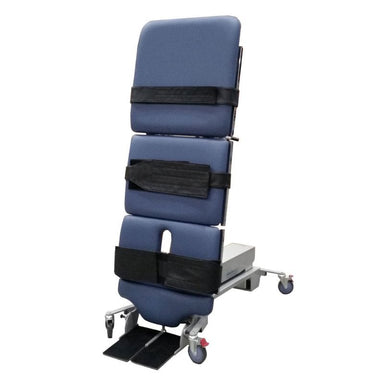

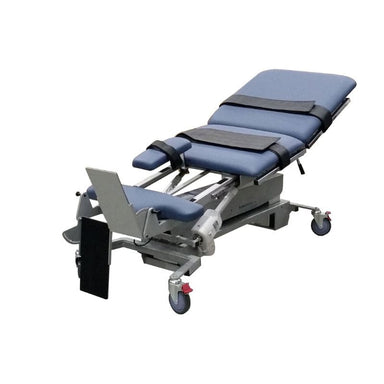

ABCO Dynamic sliding top tilt table

ABCO Dynamic Sliding Top Tilt Table
Healthtec HT Tilt Table Slide Top physio tilt table

HT Tilt Table Slide Top (Clear Span)
ABCO Dual Action tilt table for rehabilitation

ABCO Dual Action Tilt Table
Healthtec EVO2 slide top tilt table

EVO2 Slide Top Tilt Table
Ideal User / Setting Bariatric patients, hospitals, rehab centres Hospitals and diagnostic clinics doing venous tests Budget-conscious clinics needing safety and simplicity ICU, rehab and bedside therapy Rehab clinics, neuro rehab, general practice Physios, hospitals, NDIS clients General and bariatric rehab, strength reconditioning
Key Features 350kg lift capacity, electric tilt and height, CPR release, flush footplate CPR release, single footplate standard, hoist access, 250kg lift capacity Foldaway footplate, clear span base, hoist access, 3 straps, converts to exam table Adjustable height, sliding top, 350kg lift capacity, twin column stability Split footplate, friction-free sliding top, shoulder horns, clear span Dual actuator tilt, twin column lift, hoist clearance, 350kg lift capacity, twin adjustable footplates Sliding top, CPR release, hoist access, split foldaway footplates
Key Outcomes Solved Safe vertical rehab for heavier patients, easier transfers, fewer trip hazards Converts to exam table, smooth tilting, emergency-ready, no lift obstruction Safe walk-on and walk-off, tilt up to +85°, adaptable and durable Safe transfers, progressive weight bearing, accessible for carers Single leg work, posture correction, safe active rehab Safer height and tilt control, better patient handling, tilt precision Strength progression, emergency safety, zero-clearance transfers
Price $15950 $10600 $5617.50 $9320 $8750 $6420 $13700
Bottom Line Summary Heavy duty tilt table built for bariatric safety and rehab versatility. Flexible tilt table designed for safety and broad clinical use. Affordable and versatile tilt table for general rehab. Sliding tilt table for high dependency rehab environments. Combines split footplate work, mobility and posture support in one table. Versatile, powerful tilt table focused on clinical control and patient safety. Multi purpose slide top tilt table built for safety and strength progression.

Tilt Table Buyers Guide by Customer Type

Start with your setting to see which features matter and which tables fit.



Customer Type Key Needs / Features to Look For Recommended Tilt Tables
Physiotherapy Clinic Precision tilt control, posture support, compact exam table conversion HT Tilt Table Single Section, ABCO Dynamic
Rehab Clinics Sliding tops, split footplates, posture support, clear span, tilt precision EVO2 Slide Top Tilt Table, HT Tilt Table Slide Top
Hospitals CPR release, hoist access, fast tilt, safety straps, angle indicators ABCO Dual Action, EVO2 Tilt Table (Clear Span)
Neurological Rehab Patients Sliding top, posture correction, low start height, secure strapping HT Tilt Table Slide Top, EVO2 Slide Top
NDIS Participants / Providers Easy wheelchair or hoist access, low risk of injury, customisable support ABCO Dual Action, ABCO Dynamic
Bariatric Patients / Clinics 350kg+ lift capacity, wide footplate, CPR release where available HT Hi-Capacity Tilt Table, ABCO Dual Action
Spinal Cord Injury Patients Full body support, progressive weight bearing, angle control ABCO Dynamic, HT Tilt Table Slide Top
Clinics with Tight Spaces Clear span base, foldaway footplates, dual function exam or treatment surface HT Tilt Table Single Section, EVO2 Tilt Table

The Sliding Top Advantage in Physio Tilt Tables

A sliding top moves the patient's position lengthwise during tilt therapy. This lets a patient bear weight progressively, and makes transfers easier for the carer.

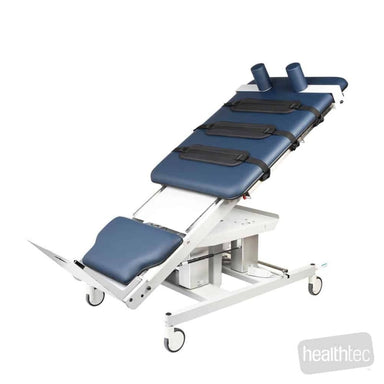

The EVO2 Slide Top, HT Tilt Table Slide Top and HT Hi-Capacity Slide Top all have this feature.



Clear Span or Low Height Tilt Table Base

A clear span base leaves the floor open under the table, so a patient lifter has room to work.

A low height base sits closer to the ground, which suits an easier step-on entry.

Choose based on how your patients transfer onto the table.

Physio tilt table clear span base for hoist access

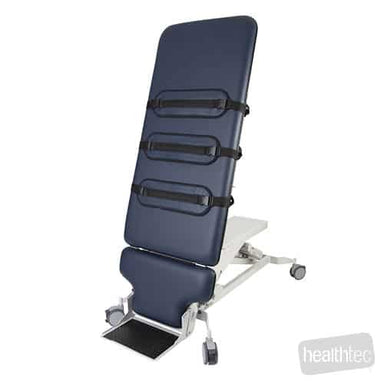

Healthtec HT Tilt Table Single Section clear span

HT Tilt Table Single Section (Clear Span)

  • Clear span base
  • Full hoist access
  • Foldaway footplate
  • 10 year structural warranty
From $5617.50 - Shop Now
Healthtec HT Tilt Table Single Section low height

HT Tilt Table Single Section (Low Height)

  • Low height base
  • Easier step-on entry
  • Dual foldaway footplates
  • 10 year structural warranty
From $5950 - Shop Now

Split or Single Footplate for Tilt Table Therapy

A split footplate lets each leg move separately, useful for single leg squats and uneven positioning.

A single footplate is simpler and suits patients who need full support under both feet.

The HT Tilt Table Slide Top and EVO2 Slide Top use split footplates. The HT Tilt Table Single Section (Clear Span) and Hi-Capacity models use a single footplate as standard.



CPR Safety Release on Tilt Tables

A CPR quick release lets a tilt table return to flat quickly in a power outage or medical emergency.

The HT Hi-Capacity, HT Hi-Capacity Slide Top, EVO2 Clear Span and EVO2 Slide Top models have this feature. Ask us before you order if your setting needs it.



FAQs for Tilt Tables

What is a tilt table used for in physical therapy?

A tilt table helps a patient move from lying to standing in stages. It supports rehab after injury, surgery or neurological conditions by improving circulation, balance and weight bearing.

What are the benefits of a tilt table?

Tilt tables support circulation, reduce the risk of a blood pressure drop on standing, and allow gradual weight bearing and posture control during early rehab.

Do tilt tables come with safety straps?

Yes. Every tilt table we sell includes three extra wide patient safety straps as standard.

What is the delivery time for tilt tables?

All tilt tables are made to order and arrive 4 to 6 weeks after you order.

Are these tables suitable for bariatric patients?

Yes. The Healthtec HT Hi-Capacity models lift 350kg and hold 450kg static. The ABCO Dynamic, Dual Action and Single Action tilt tables lift 350kg dynamic and hold 700kg static. For heavier patients, see our bariatric tables.

Are these tilt tables NDIS-compatible?

We are not a registered NDIS provider. Several tilt tables, including the ABCO Dual Action and Dynamic models, are used by NDIS participants and providers who source their own equipment. Call us to check whether your funding type can be used.

What warranty is included with these tilt tables?

Healthtec HT and EVO2 Slide Top tilt tables carry a 10 year structural warranty, 5 year electrical and 3 year upholstery warranty. The EVO2 Tilt Table (Clear Span) page lists a lifetime structural warranty, so we are confirming the current terms with Healthtec. ABCO Dynamic, Dual Action and Single Action tilt tables carry 5 years, parts only.

Need Help Choosing a Tilt Table For Your Clinic?

Tell us your patients, setting and room size. We will recommend a tilt table.

For a new clinic or a multi-table order, send us your room list. We will quote the full set.

Call us today on 1300 990 239. Or email us at sales@coreclinicalco.com.au. Monday to Friday, 10am to 4pm AEST.
