CryoIQ Pro Individual Spray Tips
Match the Spray Tip to the Treatment Area with CryoIQ Pro Spray Tips
One tip cannot suit every treatment area. Too small wastes time, and too large covers more than you need.
CryoIQ Pro spray tips apply liquid nitrous oxide as a spray. They have a glass tip and a gold-plated body, and the range covers treatment areas from 1mm to 22mm. They fit the CryoIQ Pro only.

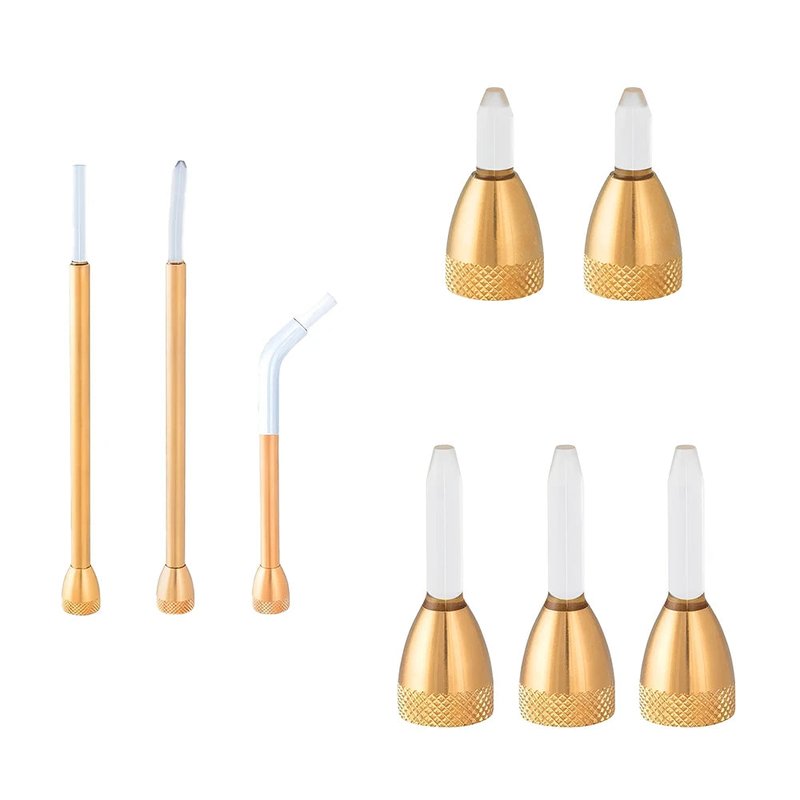

Cover 1mm to 22mm with the CryoIQ Pro Spray Tip Range
A single tip forces a compromise on every area you treat.
Choose standard 10mm tips or 22mm D1 to D3 tips. Angled, long and curved tips change the angle and reach. CryoIQ states the applicator diameter sets how much gas sprays per second, so match the tip to your treatment area.
| Tip | Length | Tip size | Treatment area | SKU |
|---|---|---|---|---|

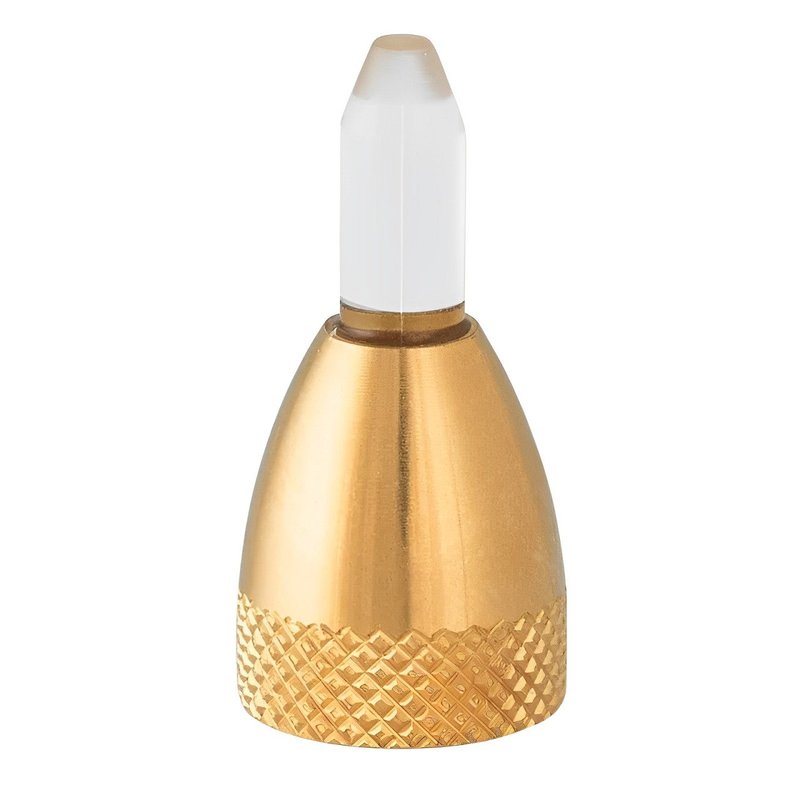

| Standard | 10mm | 60µm | 1-6mm | CIQPADST |
| Standard | 10mm | 80µm | 7-18mm | CIQPADST80 |

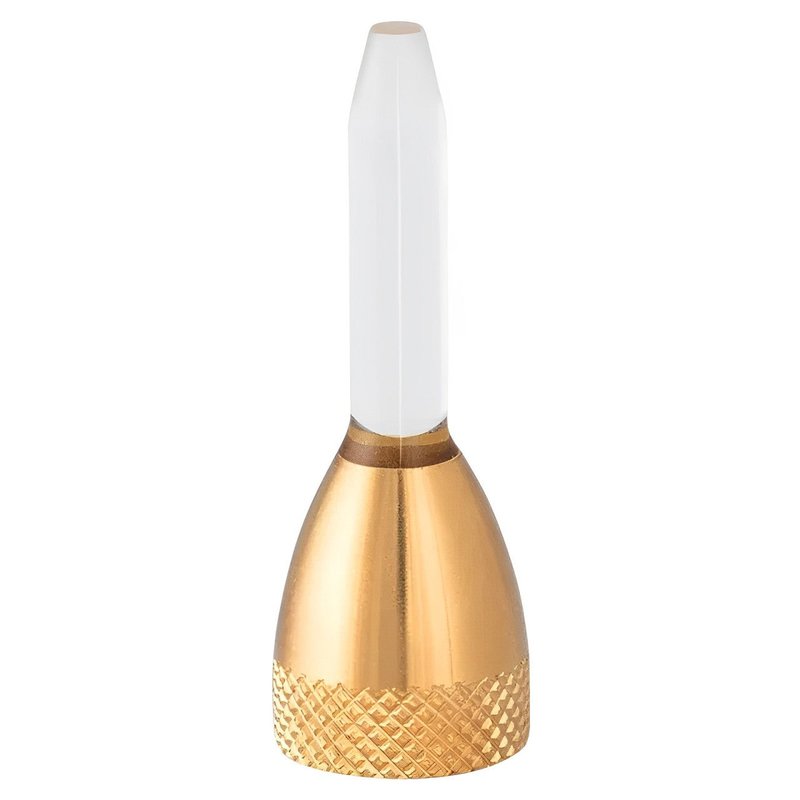

| D1 | 22mm | 60µm | 1-6mm | CIQPAD1 |
| D2 | 22mm | 80µm | 7-18mm | CIQPAD2 |
| D3 | 22mm | 100µm | 9-22mm | CIQPAD3 |

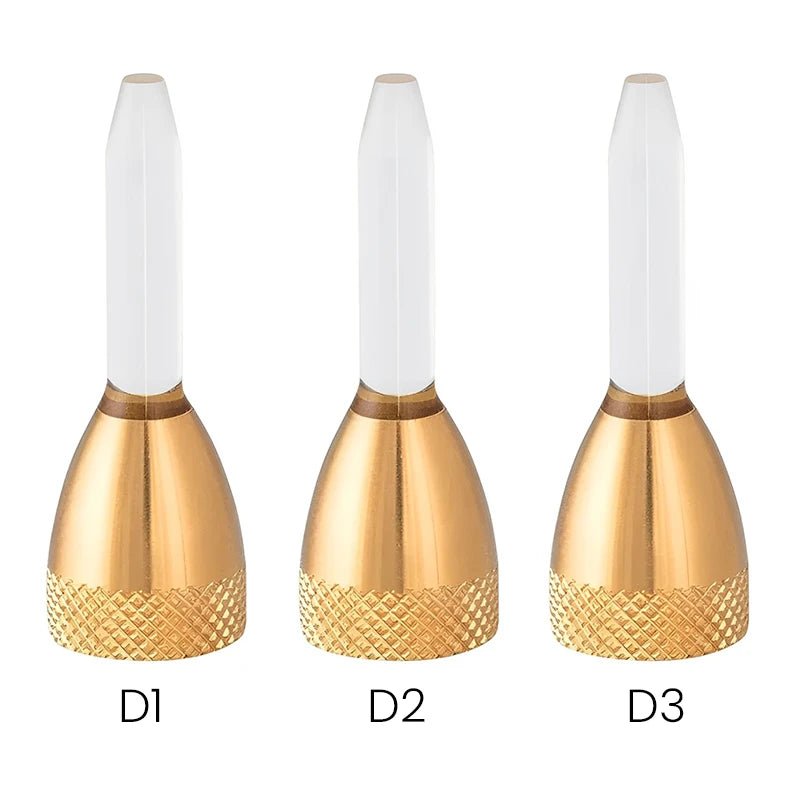

| D1 D2 D3 Set | 22mm | 60, 80, 100µm | 1-22mm | CIQPAD13 |

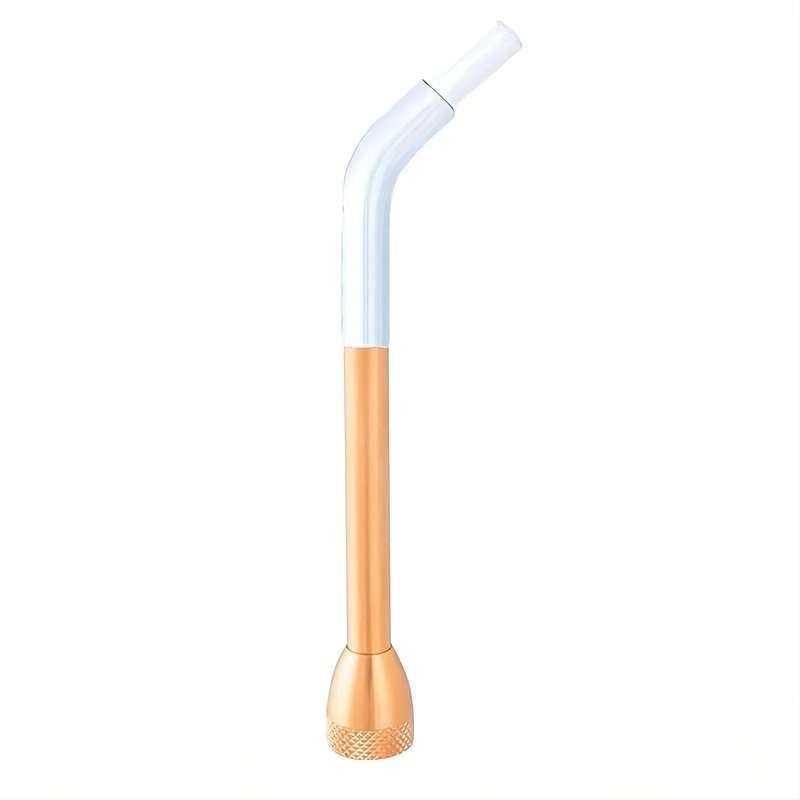

| Angled 45° | 80mm | 80µm | 7-18mm | CIQPAA45 |

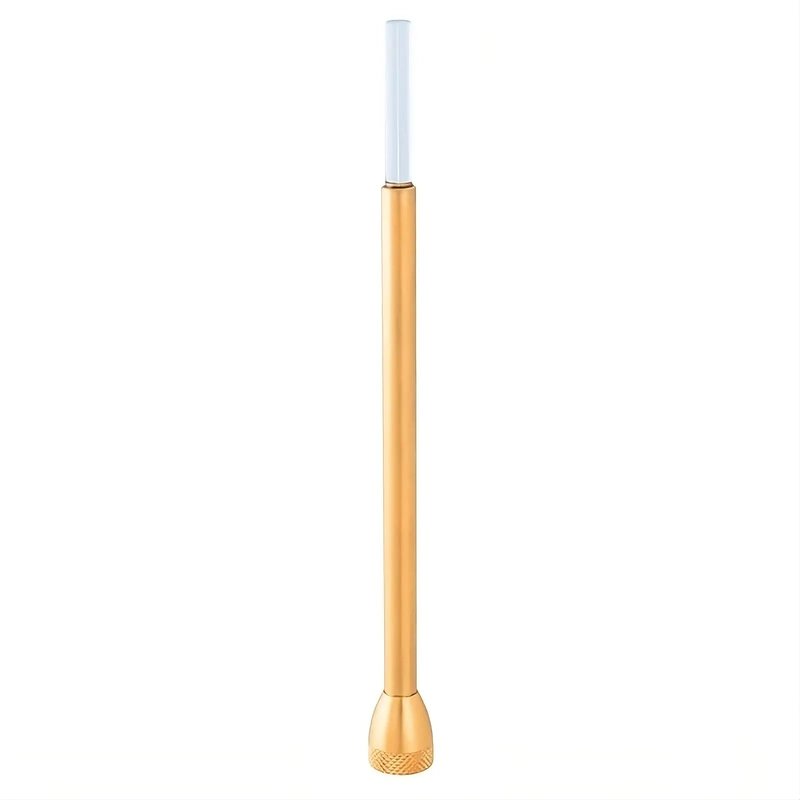

| Long | 130mm | 100µm | 9-22mm | CIQPAL13 |

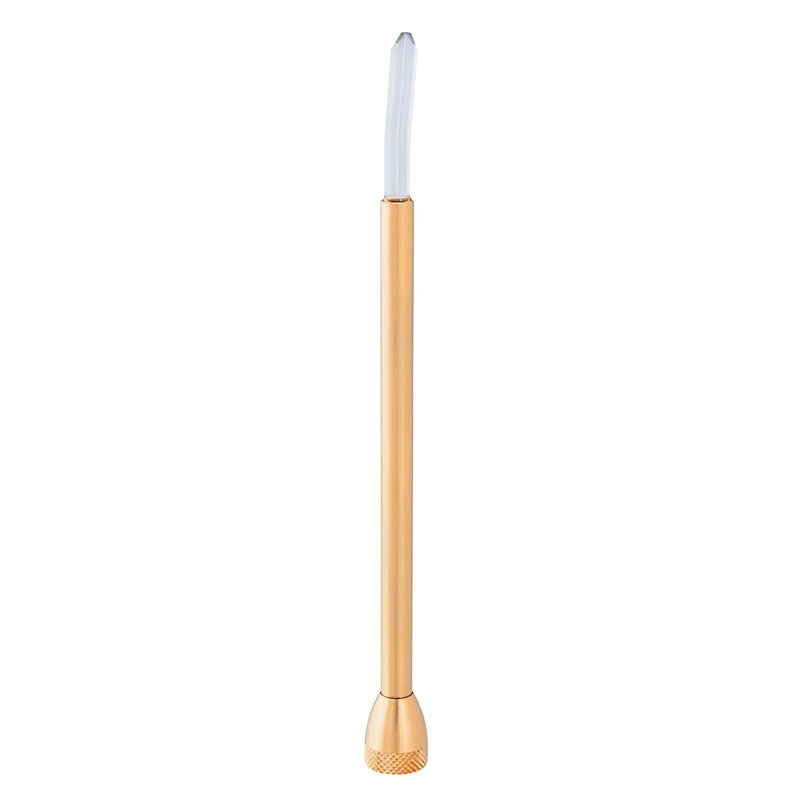

| Gyn Curved | 130mm | 100µm | 9-22mm | CIQPAL135 |
Start Freezing at Once with the CryoIQ Pro Glass Spray Tip
Waiting for a tip to cool slows down a busy consult.
CryoIQ states the standard liquid spray tip needs no pre-cooling. It is a no-contact application, so the tip does not touch the patient.
Choose Between CryoIQ Pro Spray Tips and Contact Tips
Spray suits some areas and contact suits others.
Contact tips must cool before they touch the skin. CryoIQ recommends a contact tip near sensitive areas such as the eyes, because there is no possibility of splatter. See our CryoIQ Pro contact tips to keep both types in your kit.
Clean Your CryoIQ Pro Spray Tips Fast and Know When to Steam Sterilise
Unclear cleaning rules create risk between patients.
CryoIQ classifies the infection risk as low when the spray tip does not touch the patient or breach the skin. Periodic cleaning with an alcohol wipe or a lint-free cloth and a non-corrosive disinfectant is enough. If the tip touches blood, mucous or infected tissue, CryoIQ requires steam sterilisation of the body and glass tip at 134°C, to EN 13060 and EN 285. Never sterilise a cartridge.
Expand Your CryoIQ Pro Kit with Spray Tips, No New Device Needed
Buying a whole new device to change a tip would be wasteful.
The CryoIQ Pro body takes removable, interchangeable tips. Remove the protective cap from the glass tip, then screw the tip into place. DERM kits have a fixed body and tip, so these tips do not fit them.
Summary for your clinic manager: Liquid spray freezing tips for the CryoIQ Pro. Glass tip, gold-plated body. Nine options from 1mm to 22mm, including a D1 D2 D3 set, an angled tip, a long tip and a curved tip. Fits the CryoIQ Pro only, not the DERM. No pre-cooling needed. For use by licensed practitioners.
CryoIQ Pro Spray Tips Questions Answered
Do CryoIQ Pro spray tips fit the DERM?
No. DERM kits have a fixed body and tip that cannot be removed. These tips fit the CryoIQ Pro only.
Which CryoIQ spray tip do I need?
Choose by treatment area: 1-6mm, 7-18mm or 9-22mm. Applicator diameter sets how much gas sprays per second, so match the tip to the area.
What are the angled, long and curved tips for?
CryoIQ lists them as specialised tips for the CryoIQ Pro. They change the angle and reach of the spray.
Do CryoIQ spray tips need pre-cooling?
No. CryoIQ states the standard liquid spray tip needs no pre-cooling.
How is a spray tip different from a contact tip?
A spray tip applies liquid nitrous oxide without touching the patient. A contact tip must cool first, then touches the treatment site directly.
How do I clean a CryoIQ spray tip?
Wipe it periodically with an alcohol wipe or a lint-free cloth and a non-corrosive disinfectant. Steam sterilise the body and glass tip at 134°C if it touches blood, mucous or infected tissue.
Do I need CryoIQ cartridges?
Yes. CryoIQ states other cartridges will not fit, or may impede performance and damage the device.
Who can use CryoIQ Pro spray tips?
Licensed practitioners only. Laws on who may practise cryotherapy differ between states.
Ready to add a spray tip to your CryoIQ Pro? Add your tip to your cart, or start a chat with us on this page and send a photo of your device so we can confirm it is a CryoIQ Pro.
Specifications
| Specification | Detail |
|---|---|
| Tip type | Liquid spray freezing, glass tip |
| Body | Gold-plated |
| Treatment area sizes | 1-6mm, 7-18mm, 9-22mm |
| Tip lengths | 10mm, 22mm, 80mm, 130mm |
| Compatible device | CryoIQ Pro body only. Not compatible with DERM or DERM Plus. |
| Attachment | Removable and interchangeable, screws onto the CryoIQ Pro body |
| Pre-cooling | Not required |
| Cartridges | CryoIQ cartridges only |
| Cleaning | Periodic wipe. Steam sterilise at 134°C after contact with blood, mucous or infected tissue. |
| Sterility | Supplied non-sterile |
| Use | Licensed practitioners only |
