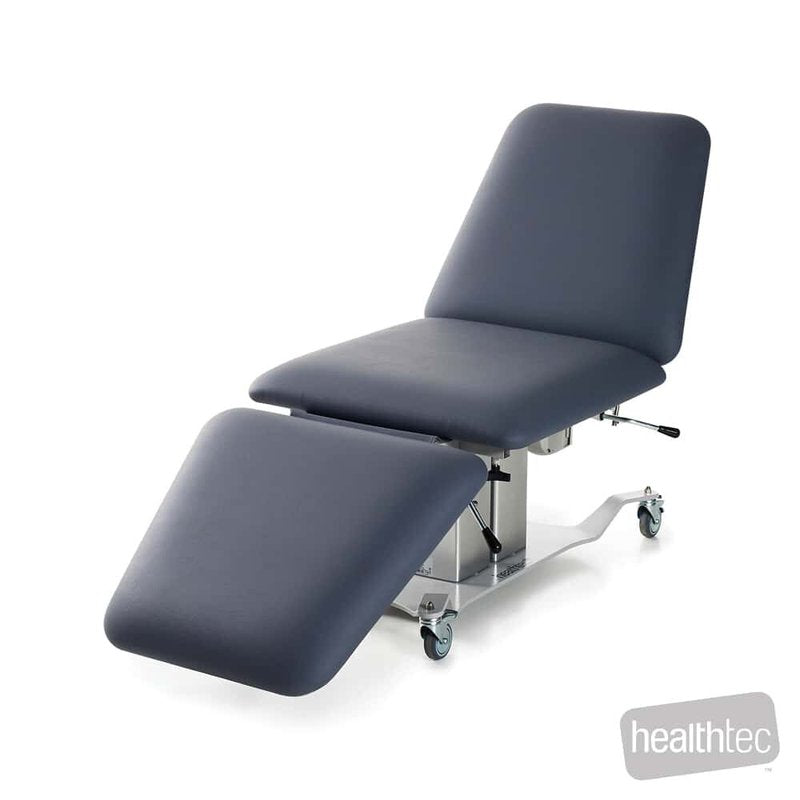

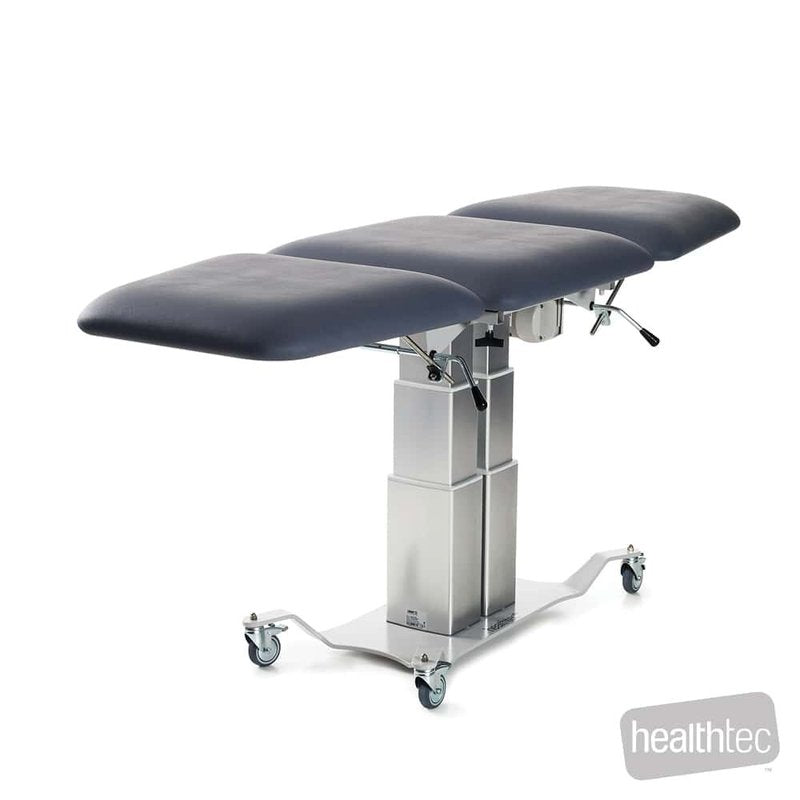

Healthtec EVO Universal Examination Table
Heavy patient handling and a tight cubicle, solved by the same table - meet the Healthtec EVO Universal Examination Table
Need to safely handle heavier patients in a room that's already short on space? Most tables make you choose one problem to solve.
This three section couch safely lifts up to 350kg, while either end section raises for left or right patient examination in tight cubicles.
Every practice should have at least one heavy-duty table that reduces fatigue and back strain, and this one doesn't force a trade-off on room layout to get it.
Healthtec EVO Universal Examination Table built to hold up in daily practice use
Each end section manually raises to +80° and lowers to -50°, the widest tilt range in Healthtec's universal line, for left or right positioning either way.
The column lift eliminates total pinch and crush points, so nothing can get trapped under the table during adjustment.
Heavy duty independently lockable castors keep the table stable while you're transferring or positioning a heavier patient.
What you actually need to know about the Healthtec EVO Universal Examination Table before ordering
Do we need the heavy-duty rating and the universal end-raising, or just one?
If your practice handles heavier patients in a space-constrained room, this covers both, 350kg moving capacity plus dual-end raising, where the Pinnacle Universal only rates to 300kg and the standard EVO2 heavy-duty tables don't raise from either end.
What's the warranty and support process if something goes wrong?
10 years structural on base and frame, 5 years electrical, 3 years upholstery. Parts only, documented by Healthtec.
Product Info
Electric Height Adjustment with Hand Switch
Every practice should have at least one heavy duty EVO Universal Examination Table allowing the safe lift of heavy patients reducing fatigue and back strain on the practitioner. This three section couch can safely lift up to 350kg. Designed to help with patient examination and procedures where space is an issue. Each end section can be manually raised +80deg and lowered – 50deg for left and right patient examination and procedures.
Column Lift Eliminating Crush Points
The column lift eliminates total pinch and crush points so nothing can get trapped under the table.
Heavy Duty Independently Lockable Castors
Medical-grade total lock castor wheels swivel 360 degree are durable and easy to maintain.
Durable Powder Coated Rust Resistant Frame
Your EVO Universal Examination Table can be ordered in a colour of your choice with accessory options to further enhance the patient and user experience. All Healthtec tables are manufactured using quality Dunlop upholstery foam.
High Quality Anti-microbial Vinyl and CFC Free Foam
The EVO column range includes a Universal Procedure Therapy Chair – All Electric.
Australian Designed and Manufactured
Get set up with confidence
Add to Cart. Live chat available if you want to confirm switch type or colour before you order.
Specifications
| Category | Detail |
|---|---|
| Weight | 80 kg |
| Dimensions | 205 × 85 × 65 cm |
| Maximum Working Load | 400kg (Stationary) |
| Maximum Lifting Capacity | 350kg (Moving) |

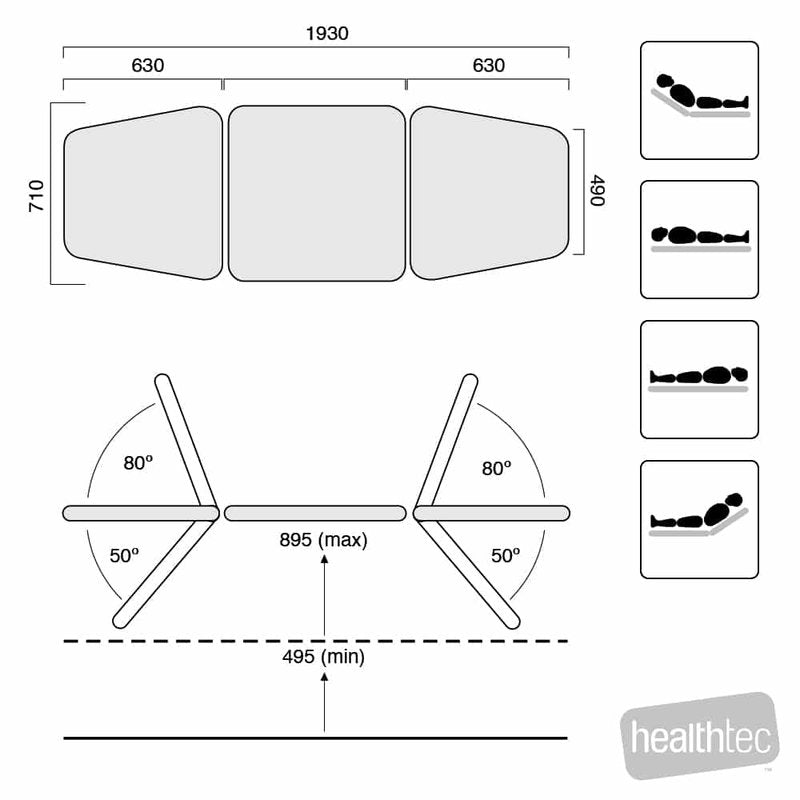

| Minimum Working Height | 470mm |
| Maximum Working Height | 870mm |
| Table Width | 710mm (Widest Point) |
| Table Length | 1930mm |
| Cushioning | 75mm Foam |
| Controller | Hand Switch (Foot Switch Upgrade Available) |
| Base/Castor | Column Base w/independently Lockable Castors 360º Rotation |
| Backrest | Each End Section Manually Adjustable +80º -50º |
The specifications put forth in this website were in effect at the time of publication. However, due to Healthtec's policy of continuous improvement, changes to these specifications may be made at any time without any obligation on the part of Healthtec Pty Ltd. All dimensions shown are nominal only.
