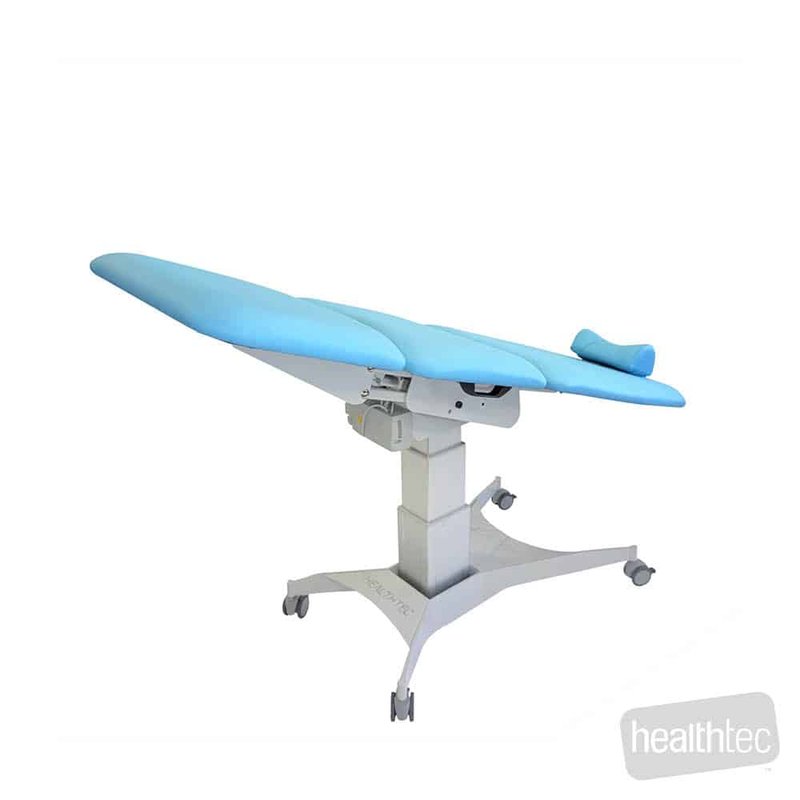

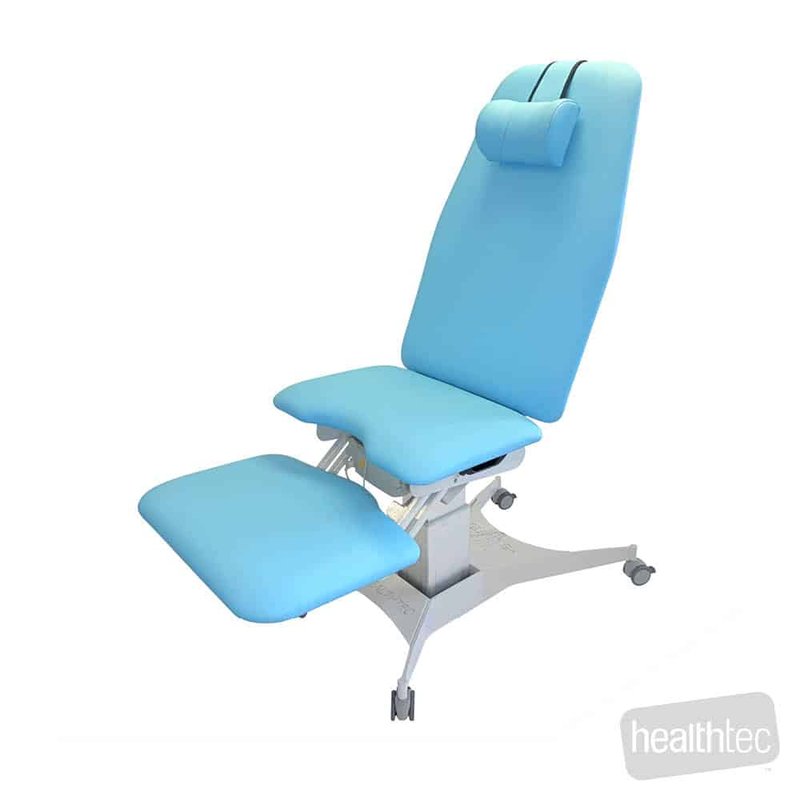

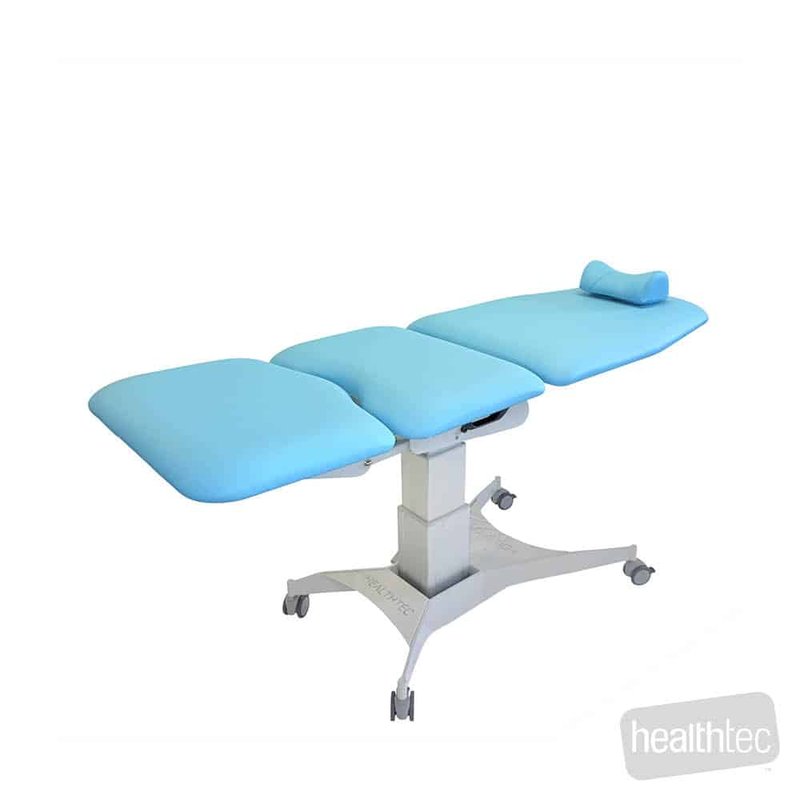

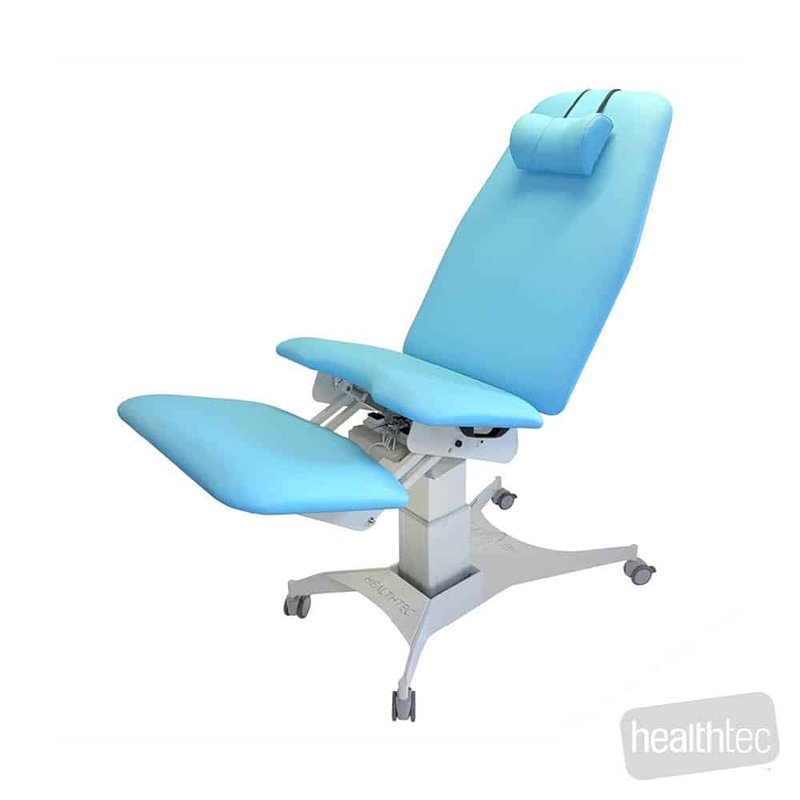

Healthtec Pinnacle Gynae Couch
A single column base built to eliminate crush points, not just minimise them - meet the Healthtec Pinnacle Gynae Couch
Worried about pinch or crush points during height adjustment with a patient already in a vulnerable position? The Pinnacle's column design is built to remove that risk.
The single heavy-duty TiMotion column eliminates potential crush points for additional safety and confidence, not just a reduced risk.
Patient comfort during gynaecological procedures supports the wellbeing of both clients and specialist practitioners, not just one or the other.
Healthtec Pinnacle Gynae Couch built to hold up in daily practice use
The electric backrest adjusts to +70°, with electric leg rest adjustment too, both controlled by foot switch.
The TiMotion column is durable and very low maintenance, so it holds up under daily use without frequent servicing.
Heavy duty lockable castors make the couch easy to move when required, without compromising stability while it's in use.
What you actually need to know about the Healthtec Pinnacle Gynae Couch before ordering
Is this the same base as the SX Gynae models?
No, this uses the Pinnacle single-column base, a different mechanism to the X-Frame base on the SX Gynae Table and Chair. The same Pinnacle base is also offered as a Phlebotomy/Oncology Chair, so it's a genuinely different platform, not a rebadged SX model.
What's the warranty and support process if something goes wrong?
10 years structural on base and frame, 5 years electrical, 3 years upholstery. Parts only, documented by Healthtec.
Product Info
This Pinnacle Gynae Couch has all of the traditional comfort characteristics found in Healthtec's comprehensive product range. Patient comfort during Gynaecological procedures assists with well being of clients and specialist practitioners.
Your Pinnacle Gynae Couch can be ordered in a colour of your choice with accessory options to further enhance the patient and user experience. All Healthtec chairs and tables are manufactured using quality Dunlop upholstery foam.
The Pinnacle base, with single heavy-duty column, is also offered as a Phlebotomy/Oncology Chair.
Healthtec column style chairs and tables are designed to eliminate potential crush points for additional safety and confidence. The electrically operated TiMotion column is durable and very low maintenance.
The heavy duty lockable castor wheels make it easy to move when required.
Being Australian designed and manufactured, this Healthtec Pinnacle Gynae Couch has a 10 Year Structural Warranty on the base and frame. Your chair quality and performance is further enhanced with best in class 5 Year Electrical and 3 Year Upholstery warranty.
Get set up with confidence
Add to Cart. Live chat available if you want to confirm colour or accessory options before you order.

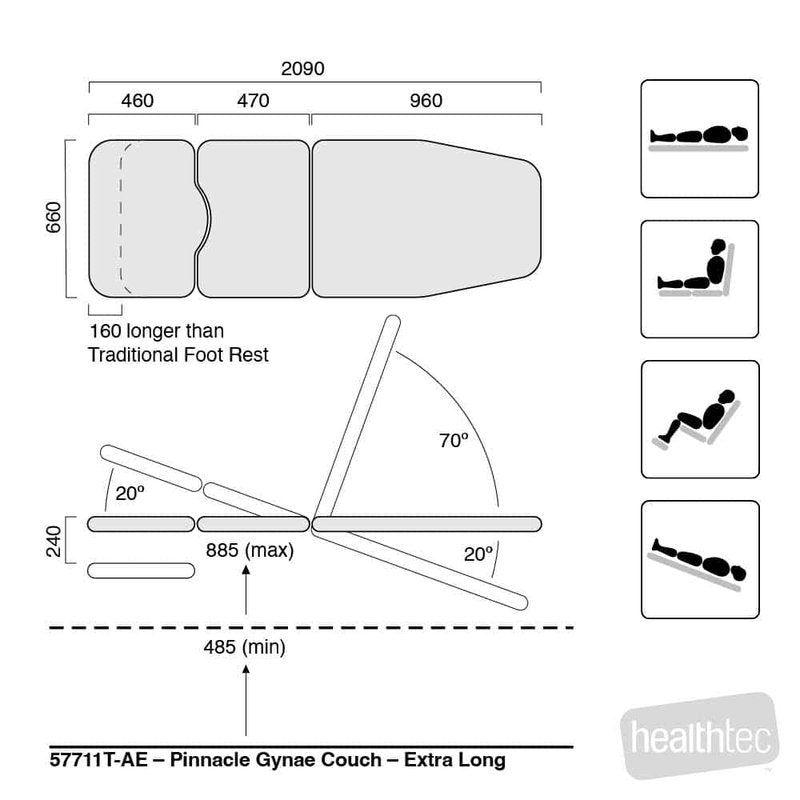

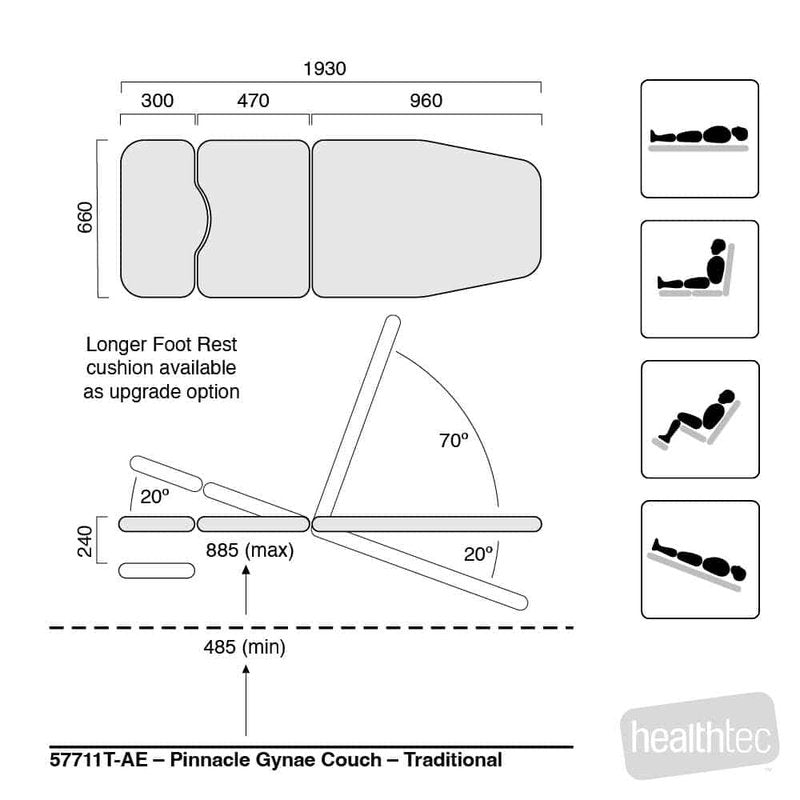

Specifications
| Category | Detail |
|---|---|
| Weight | 80 kg |
| Dimensions | 205 × 75 × 65 cm |
| Maximum Working Load | 300kg (Stationary) |
| Maximum Lifting Capacity | 250kg (Moving) |
| Minimum Working Height | 485mm |
| Maximum Working Height | 885mm |
| Table Width | 660mm |
| Table Length | 1930mm |
| Hi-Lo Time | 16 Seconds |
| Cushioning | 75mm Comfort Foam |
| Controller | Foot Switch |
| Base/Castor | Pinnacle base with Individually Lockable Castors |
| Backrest | Electric Adjustment +70º |
| Legrest | Electric Adjustment |
The specifications put forth in this website were in effect at the time of publication. However, due to Healthtec's policy of continuous improvement, changes to these specifications may be made at any time without any obligation on the part of Healthtec Pty Ltd. All dimensions shown are nominal only.
