Healthtec SX GP Examination Table Two Section
A footprint that doesn't shift as it lifts, built for cubicles with no room to spare - meet the Healthtec SX GP Examination Table
Worried a height-adjustable table will creep forward or back in a cubicle that's already tight? The SX's scissor action doesn't move that way.
There's no longitudinal movement from high to low, so the table's footprint stays exactly where you placed it through the full height range.
A low minimum height gives patients easy access, while the lift-up back section adds a comfortable seated or semi-reclined position.
Healthtec SX GP Examination Table built to hold up in daily practice use
Electric locking castors secure the table in place without you crouching to lock each wheel individually.
The electric backrest adjusts to +70° via foot switch, so repositioning between patients doesn't need a manual crank.
The X-Frame lift action minimises pinch and crush points, an important detail in a compact cubicle where staff are working close to the mechanism.
What you actually need to know about the Healthtec SX GP Examination Table before ordering
Will this actually fit in a small cubicle without the height mechanism eating into the space?
The scissor action lifts with no longitudinal movement from high to low, so the table's footprint doesn't grow or shift as it adjusts, it's specifically designed for small cubicles where that would otherwise be a problem.
What's the warranty and support process if something goes wrong?
10 years structural on base and frame, 5 years electrical, 3 years upholstery. Parts only, documented by Healthtec.
Product Info
Electric Height Adjustment with Foot Switch
The SX GP Examination Table features a smooth scissor action with no longitudinal movement from high to low enabling it to fit easily into small cubicles.
Electric Back Rest Adjustment with Foot Switch
The low minimum height allows for easy patient access and comfort while the maximum height can quickly be set to suit the practitioner's requirements and the lift-up back section enables a comfortable seated or semi-recline position.
X-Frame Lift Action Minimises Pinch and Crush Points
Your SX GP Examination Table can be ordered in a colour of your choice with accessory options to further enhance the patient and user experience. All Healthtec tables are manufactured using quality Dunlop upholstery foam.
Electric Locking Castors
Upholstered Side Rails are an upgrade option.
Durable Powder Coated Rust Resistant Frame
High Quality Anti-microbial Vinyl and CFC Free Foam
Australian Designed and Manufactured
Get set up with confidence
Add to Cart. Live chat available if you want to confirm width, side rails, or colour before you order.
Specifications
| Category | Detail |
|---|---|
| Weight | 80 kg |
| Dimensions | 205 × 85 × 75 cm |
| Maximum Working Load | 400kg |
| Maximum Lifting Capacity | 250kg |

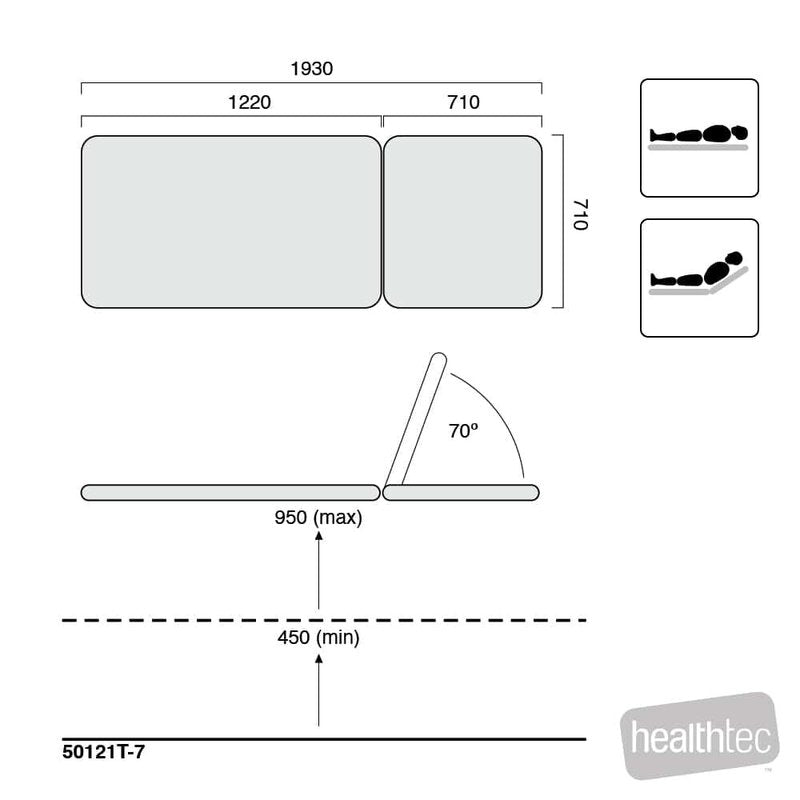

| Minimum Working Height | 450mm |
| Maximum Working Height | 950mm |
| Table Width | 710mm Standard (Optional 610mm) |
| Table Length | 1930mm |
| Hi-Lo Time | 16 seconds |
| Cushioning | 50mm Foam |
| Controller | Foot Switch |
| Base/Castor | X-Frame w/independently locking castors – 360º rotation |
| Backrest | Electric Adjust to +70º |
The specifications put forth in this website were in effect at the time of publication. However, due to Healthtec's policy of continuous improvement, changes to these specifications may be made at any time without any obligation on the part of Healthtec Pty Ltd. All dimensions shown are nominal only.
